Pen Vibration Meter

Pen size Vibration Meter

Vibration Meter Tester-Pen Size

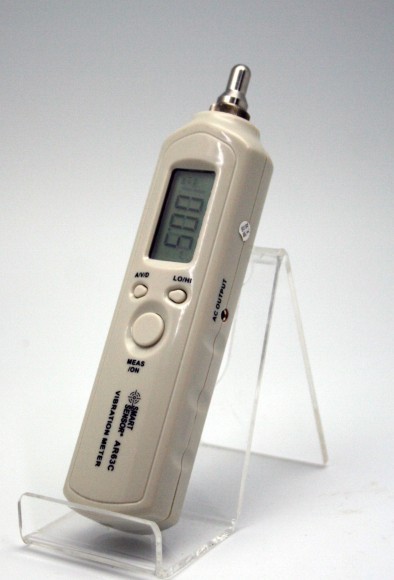

Pen size vibration meter is newly released vibration measurement product. The vibration meter has a higher stability,better repeatability and smaller size.It has beautiful designing and easily taking.

The pen size vibration meter introduces Piezoelectric Acceleration Transducer which can transfer the vibration signal in to electrical signal, and analyze the input signals, and show the Acceleration, speed, shift of the vibration.The vibration meter can be widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.


Items Technical Specification
Vibration Principle Piezoelectric Ceramic Accelerometer(shear-type)
Acceleration Frequency Range 10HZ-1KHZ(LO)
Velocity Frequency Range 10HZ-1KHZ
Displacement Frequency Range 10HZ-1KHZ
Acceleration 0.1~199.9m/s2
Velocity 0.1~199.9m/s
Displacement 0.001~1.999mm
Accuracy ±5%H±2digits
Singnal Output AC output
Auto Switch Range Yes
Auto Power off Yes
Backlight Yes
Power AAA*2 battery
Net Weight 60g
Dimension 150*40*20mm
Packing Gift box
Nos per carton 40pcs
Carton Size 52*40*49cm
G.W. of one carton 15kgs
