Mini Anemometer

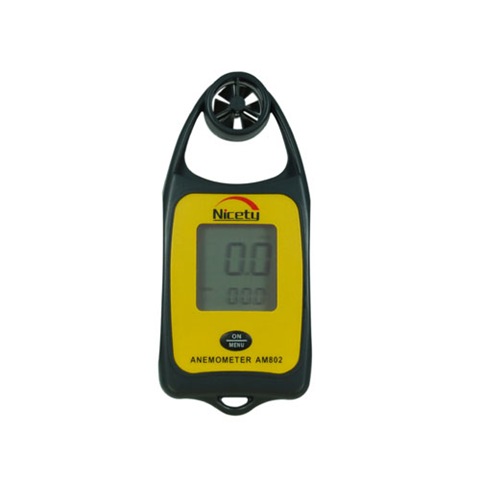

Mini Anemometer-801.802

801-802 yello         801-802

Mini anemometer has a light compact design with low power consumption.Easy to take and can put it in pocket. A key operation,simple and quick operation.

Technical Specification

Sensor: Plastic fan blade and NTC temperature sensor

Working principle:Magnetic induction

Measuring parameters:M/S,KM/H,KNOTS,FPS,MPH

Measuring range: Wind velocity:0.6-20m/s

Temperature:-10 ~ 50 º C/-14 ~ 122º F

Resolution:+/-3% or +0.4m/s

+/-1 º C

Sampling period:0.5s

Environment temp.:-20 ~ 70 º C/-4 ~ 158º F

Shipping/storing temp.:-20 ~ 80 º C/-4 ~ 170º F

Power supply:3V,CR2032 battery

Battery life: 3 years (Backlight off)

Dimension:48.5*102*16.5mm

Weight:55g(including battery)

Max value displayed

Automatical power off

Backlight

Can measure wind-cold index number (Only 802)

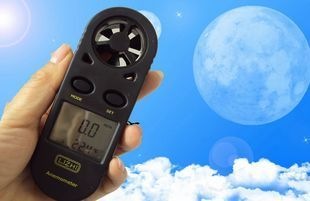

Mini Anemometer 816

816

The mini anemometer is widely used for data collection of boiler, refrigeration, ventilation pipe, environmental monitoring, marine measurement and weather forecast, outdoor operation and fire department.

Technical Specification

Wind temp.range:-10º C~ 45º C
Wind speed range:0.3~ 30m/s
C/F temperature unti switching: Yes
Temp.accuracy:+/-2º C
Wind speed accuracy:+/-5%
Air Velocity Unit:   m/s,Ft/min,Knots,km/h,Mph
Average wind speed measuring    Yes
Max/Min wind speed measurin    Yes
Backlight Display    Yes
Low Battery Indication    Yes
Analog Quantity Display    Yes
Resolution    0.1m/s,0.2º C
Power: Battery CR2032 3.0V
Product Net Weight    52.1g
Product Size     105*40*15mm
Packing    Blister

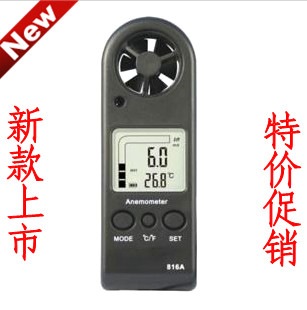

Mini Anemometer 816A

C816A

Technical Specification

Wind temp.range:-10º C~ 45º C
Wind speed range:0.3~ 30m/s
C/F temperature unti switching: Yes
Temp.accuracy:+/-2º C
Wind speed accuracy:+/-0.1 digit
Air Velocity Unit:   m/s,Ft/min,Knots,km/h,Mph
Average wind speed measuring    Yes
Max/Min wind speed measurin    Yes
Backlight Display    Yes
Low Battery Indication    Yes
Analog Quantity Display    Yes
Resolution    0.1m/s,0.2º C
Power: Battery CR2032 3.0V
Product Net Weight    53g
Product Size     113*40*15mm
Packing    Blister
